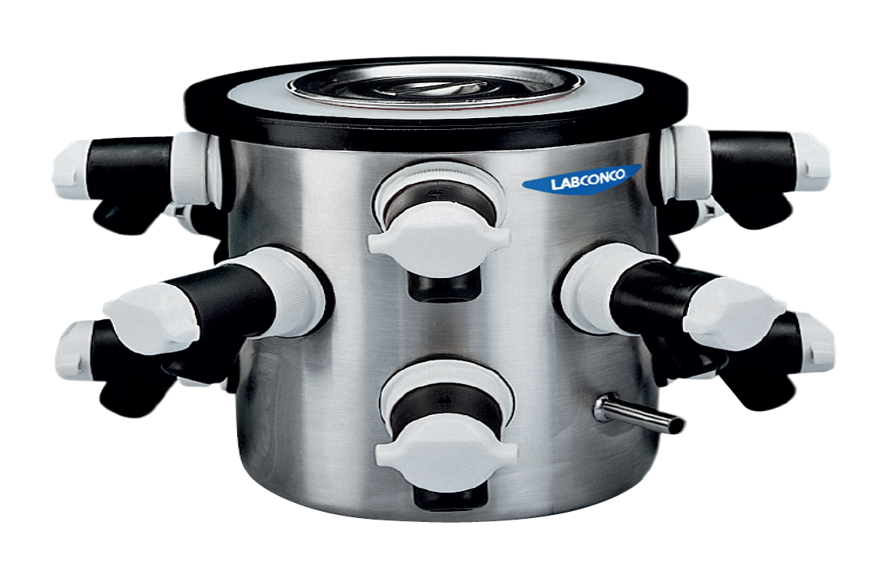

Dry Ice Benchtop Freeze Dryer, 12-Port

Dry Ice Benchtop Freeze Dryer, 12-Port

For the laboratory with occasional lyophilization requirements, the Dry Ice Benchtop Freeze Dryer provides a simple, economical means of freeze-drying. Since dry ice cools alcohol or other heat transfer solutions to approximately 75 degrees C or -103 degrees F, the Dry Ice Benchtop Freeze Dry System is ideal for processing materials with low eutectic points. The Dry Ice Benchtop Freeze Dry System is equipped with a center well for dry ice and solvent that serves as a water vapor collector and doubles as a convenient pre-freezing bath. Flasks, serum bottles and ampules may be frozen by dipping and rotating them in the well. Type 304 stainless steel with twelve valves and a single run capacity of 1 liter. Valves accommodate either 1/2″ or 3/4″ flask adapters. Includes dry ice/solvent center well with 1.92 liter capacity and cover, 1/2″ outside diameter port for connection to vacuum pump and 3/8″ outside diameter port or connection to vacuum gauge.

• SS part no: SS-7522700

Starting from

$3,023.00

Quantity

Estimated Total

Excl. shipping & installation

$5,350

1 × $5,350

Add To Cart
Request a Quote
For the laboratory with occasional lyophilization requirements, the Dry Ice Benchtop Freeze Dryer provides a simple, economical means of freeze-drying. Since dry ice cools alcohol or other heat transfer solutions to approximately 75 degrees C or -103 degrees F, the Dry Ice Benchtop Freeze Dry System is ideal for processing materials with low eutectic points. The Dry Ice Benchtop Freeze Dry System is equipped with a center well for dry ice and solvent that serves as a water vapor collector and doubles as a convenient pre-freezing bath. Flasks, serum bottles and ampules may be frozen by dipping and rotating them in the well. Type 304 stainless steel with twelve valves and a single run capacity of 1 liter. Valves accommodate either 1/2″ or 3/4″ flask adapters. Includes dry ice/solvent center well with 1.92 liter capacity and cover, 1/2″ outside diameter port for connection to vacuum pump and 3/8″ outside diameter port or connection to vacuum gauge.
Physical Dimensions
SS Part No.
SS-7522700
Voltage
Refrigerant
Airflow Performance
SS Part no.
7522700

ASHRAE 110

As-Manufactured (AM) and As-Installed (AI) performance test using SF₆ tracer gas. Included with every unit.
  • ✓ Factory Certified

UL 1805

Underwriters Laboratories listing for laboratory furniture and fume hoods. Electrical components verified.
  • ✓ UL Listed

OSHA 1910.1450

Occupational Exposure to Hazardous Chemicals in Laboratories standard (Lab Standard). Fully compliant.
  • ✓ Compliant
