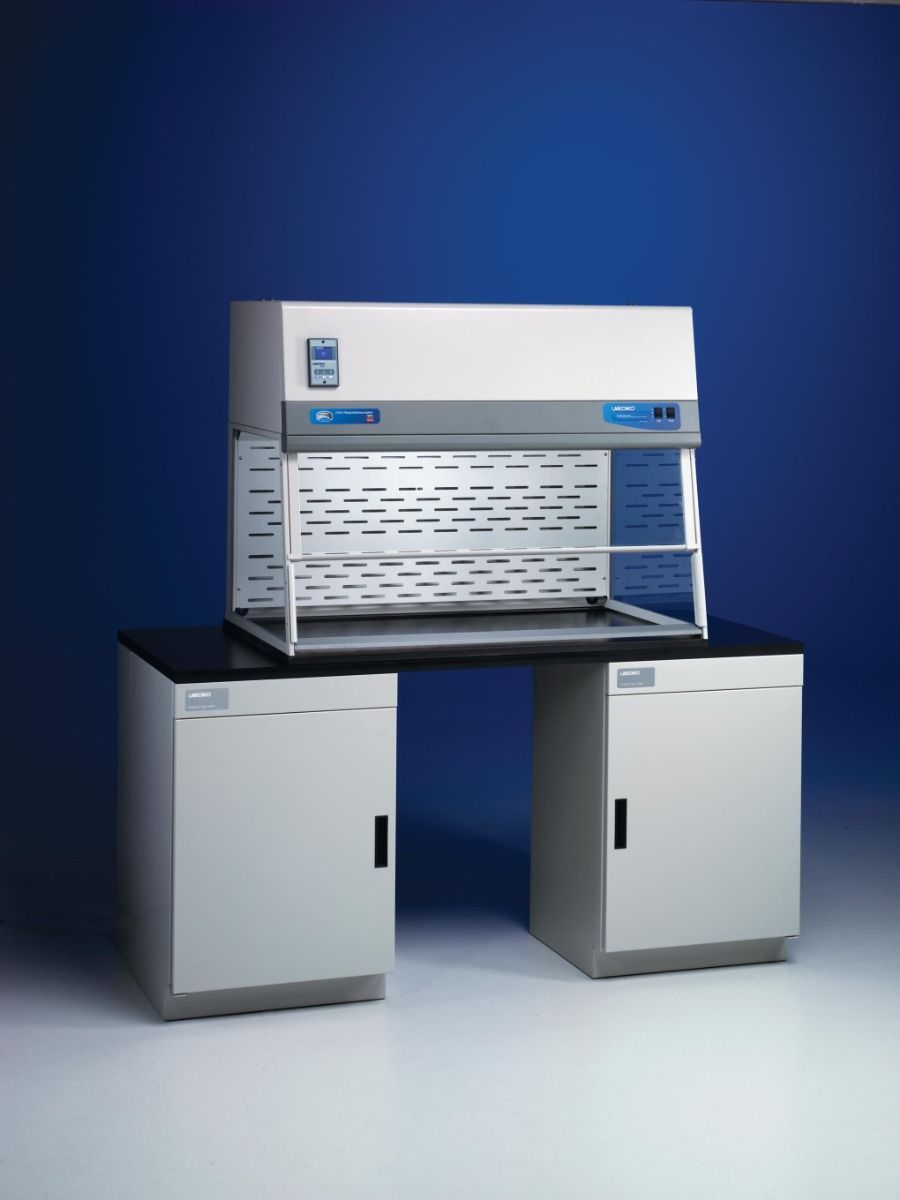

XPert Filtered Balance Station 2′

Name: XPert Filtered Balance Station 2' - speciality
Availability: InStock

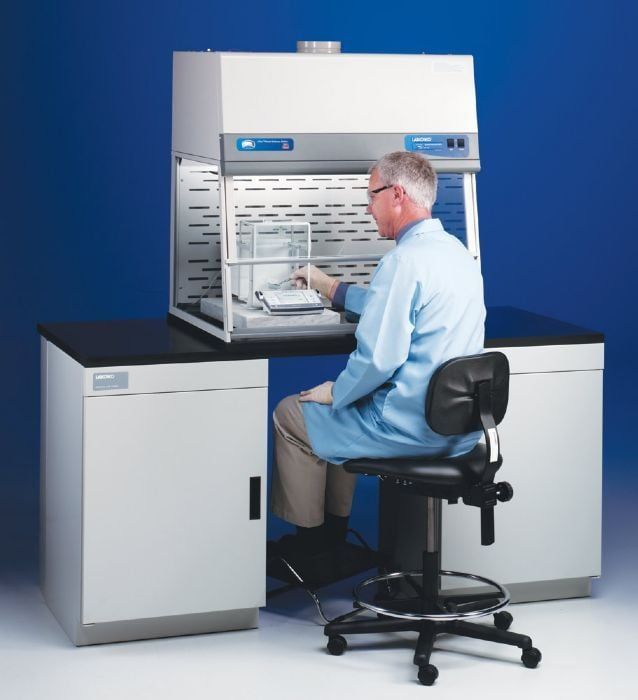

These stations are often ideal for powder weighing applications found in pharmaceutical research and other industries. Interior dimensions accommodate large micro and analytical balances and containment-enhancing features ensure personnel safety.

• SS part no: SS-3940200 • Voltage: 115V

Starting from

Price range: $5,813.00 through $8,243.00

Quantity

Configuration

Clear

Estimated Total

Excl. shipping & installation

$5,350

1 × $5,350

Features

Deep 23″ or 30″ interior to accommodate large micro and analytical balances
Ergonomic air foil with aerodynamic Clean-Sweep airflow openings
Upper dilution air supply
Upper containment sash foil
Zone-perforated rear baffle
Side-entry air foils
Exhaust HEPA filter, 99.99% efficient on particles 0.3 micron in size
True bag-in/bag-out filter disposal system
Minihelic pressure gauge
Glacier white and gray, dry powder epoxy-coated aluminum frame and steel rear plenum and baffle. No unreliable plastic-to-plastic bonding is used.
Pre-wired fluorescent lamp and switches for blower and light. Blower switch is connected to an electrical replay and junction box behind the front panel.
1/4″ thick tempered safety glass front sash and sides
9.4″ or 12.0″ high sash opening
Ergonomic 10 degree angled and hinged sash that pivots upward, locks for loading and has a wiping seal to contain contaminants
Two utility ports
Particulate containment independently verified by SafeBridge Consultants, Inc.
Validation package

Options

2′, 3′, 4′, 5′ and 6′ widths
International electrical configuration
Built-in Guardian 1000 Digital Airflow Monitor or Guardian Airflow Monitor

Required Accessories

Work surface
Supporting base
Remote blower
Ductwork
Carbon Filters for Some Models (see brochure)

Optional Accessories

Utility Shelves
Exhaust Dampers

Physical Dimensions

SS Part No.

SS-3940200

Voltage

115V

Refrigerant

Airflow Performance

Exterior Width

Exterior Depth (in.)

29"

Interior Depth (in.)

23.4"

ASHRAE 110

As-Manufactured (AM) and As-Installed (AI) performance test using SF₆ tracer gas. Included with every unit.

UL 1805

Underwriters Laboratories listing for laboratory furniture and fume hoods. Electrical components verified.

OSHA 1910.1450

Occupational Exposure to Hazardous Chemicals in Laboratories standard (Lab Standard). Fully compliant.

Frequently Bought Together

Based on your application, one of the following product families will best match your requirements. Our engineering team can help you select the right model and configure it to your exact specifications.

XPert Filtered Balance Station 4′

XPert Filtered Balance Stations are vented balance enclosures designed to protect the user during powder weighing operations. The built-in HEPA filter removes particulates so that clean air is exhausted to the outside atmosphere. As its name implies, the XPert Filtered Balance Station is “stationary” because ducting to an exhaust system with a remote blower is required (ductwork and blower sold separately). These stations are often ideal for powder weighing applications found in pharmaceutical research and other industries. Interior dimensions accommodate large micro and analytical balances and containment-enhancing features ensure personnel safety.

Starting from

Price range: $7,207.00 through $9,628.00

XPert Filtered Balance Station 3′

Starting from

Price range: $6,511.00 through $8,938.00
